Foam Expansion Tubes


When greater expansion rates of foam solution are needed, a foam aeration tube can be quickly attached to many of Elkhart Brass’ combination fog nozzles.

Call us TODAY at 727-835-0657 or
Toll Free at 800-761-4298

Get A Free Quote!

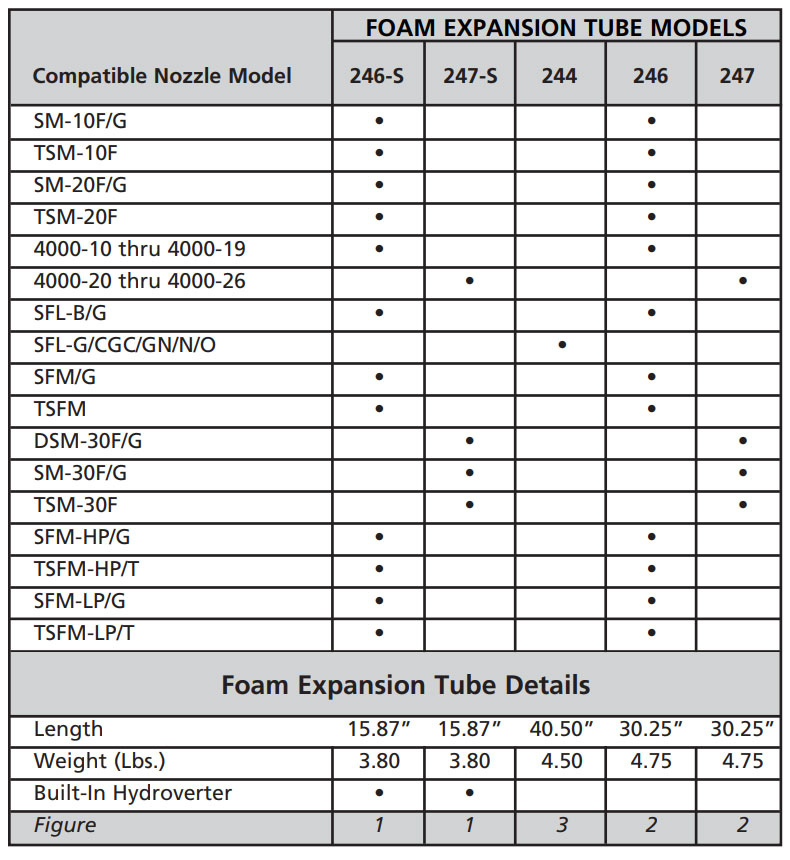

TUBE CONFIGURATIONS
246-S246-S
246246
244244
Figure 1
Figure 2
Figure 3

foam expansion tubes from Elkhart BrassClick for larger view


XD Foam Tube

Designed for use when greater foam expansion rates are needed, the XD Foam Tube is an ideal accessory for any XD handline fog nozzle. The tube is an aluminum and composite design combining maximum durability in a lightweight package. Featuring an internal Hydroverter screen which optimizes the finished foam by increasing agitation and large air inlets. The tube is secured by a single locking lever for quick and easy attachment/removal.


xd foam tube
New XD Compatible option
MODELS MID RANGE FOAM TUBE HIGH RANGE FOAM TUBE
Part Number 03976301 03976401
Overall Length 16.09" 16.77"
Weight 3.6 Lbs. 3.8 Lbs.
