Wyes

Used to divide a single flow, usually at a fireground scene, wyes must be both reliable and easy to use. Elkhart offers several customizable handle options. All Elkhart wyes give years of dependable service. When necessary, they are easy to field service and re-buildable for continued long-term use. Both two-way and three-way wye options are available; and all wyes are rated to 200 psi.

Call us TODAY at 727-835-0657 or
Toll Free at 800-761-4298

• Click Here For Accessories


B97/B97A (2-WAY)
– POSITIVE TWIST LOCK

B-100/B-100A

1/1A

Wyes Model B97/B97A Appliances (fig. 1)
Wyes Model B-100/B-100A Appliances (fig. 2)
Wyes Model 1/1A Appliances (fig. 3)

Figures depict general product types only and are not intended to be inclusive of all product features

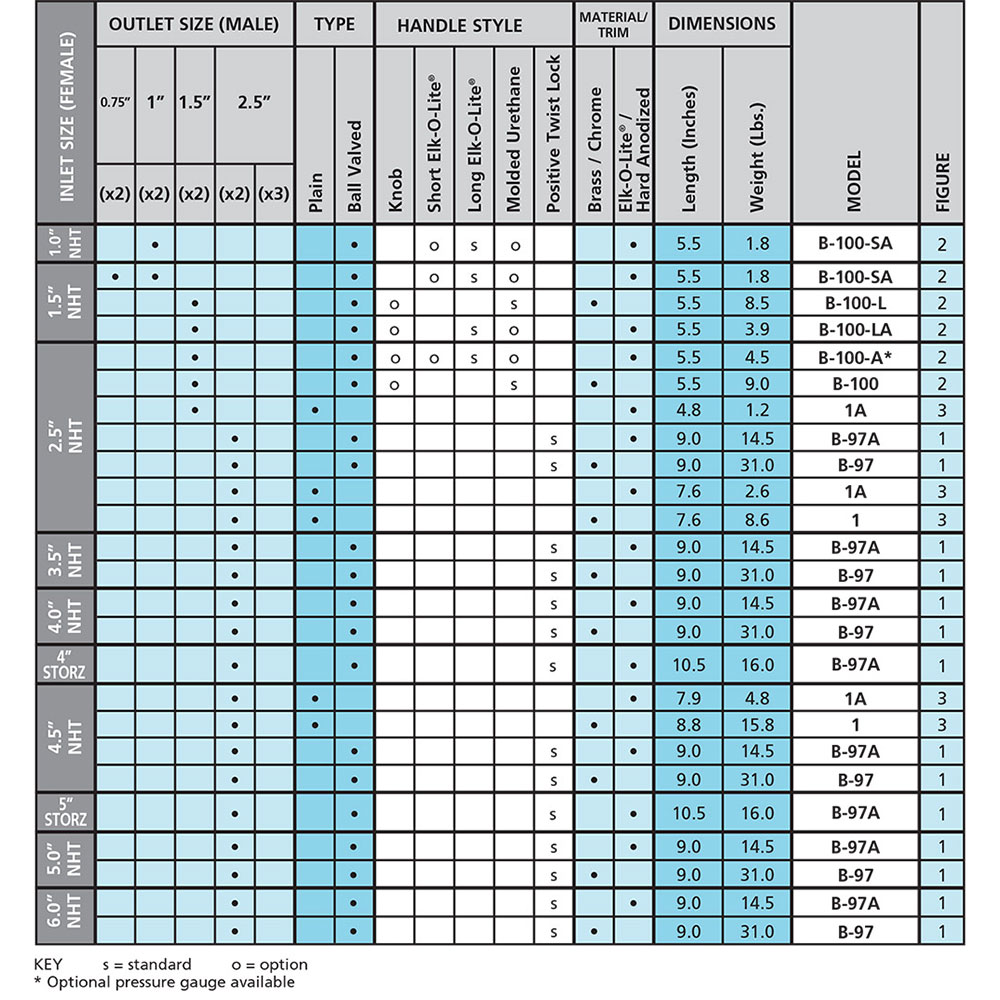

Elkhart Brass Wyes selection guide

*Scroll to the right on mobile to see entire chart
Following models are rated to 300 psi (20.69 bar)
2.5" F Inlet B-100-A
1.5" F Inlet B-100-LA
1" or 1.5" F Inlet B-100-SA

KNOB
SHORT (ELK-O-LITE®)
LONG (ELK-O-LITE®)
MOLDED URETHANE
POSITIVE TWIST LOCK
Wyes Handle Knob
Wyes Handles Short (Elk-O-Lite®)
Wyes Handles Long (Elk-O-Lite®)
Wyes Handles Molded Urethane
Wyes Handle Postive Twist Lock
Not all handles available on all models.
All twist-locks feature metal knurled knobs.

PRESSURE GAUGE
Wyes Pressure Gage
THREADS

All fireground connections are NHT unless otherwise specified.

DIMENSIONS MODEL
Length (Inches) Weight (Lbs.)
5.5 1.8 B-100-SA
5.5 1.8 B-100-SA
5.5 8.5 B-100-L
5.5 3.9 B-100-LA
4.8 1.0 1A
4.8 2.3 1
5.5 4.5 B-100-A*
5.5 9.0 B-100
4.8 1.2 1A
4.8 4.0 1
9.0 14.5 B-97A
9.0 31.0 B-97
7.6 2.6 1A
7.6 8.6 1
10.5 21.5 B-95-A
10.5 46.0 B-95
7.9 3.8 1
8.8 12.5 1A
9.0 14.5 B-97A
9.0 31.0 B-97
10.5 21.5 B-95A
10.5 46.0 B-95
7.9 4.4 1A
8.8 14.5 1
9.0 14.5 B-97A
9.0 31.0 B-97
10.5 21.5 B-95A
10.5 46.0 B-95
7.9 4.8 1A
8.8 15.8 1
9.0 14.5 B-97A
9.0 31.0 B-97
10.5 21.5 B-95A
10.5 46.0 B-95
10.5 16.0 B-97A
12.0 23.0 B-95A
9.0 14.5 B-97A
9.0 31.0 B-97
10.5 21.5 B-95A
10.5 46.0 B-95
9.0 14.5 B-97A
9.0 31.0 B-97
10.5 21.5 B-95A
10.5 46.0 B-95
