Butterfly Suction Intake Valves

Elkhart Brass offers a special cast iron, butterfly valve with Elk-O-Lite® end caps for use as a suction intake in apparatus applications. The valve features an aluminum/bronze disc, reinforced EPDM seat (bi-directional) and a two-piece stainless steel stem. It is also rated to 200 psi, finished in red urethane enamel with polished chrome hand-wheel and hard anodized end caps. The gear operated version complies with NFPA 1901.

• Click Here For Accessories
Get A Free Quote!

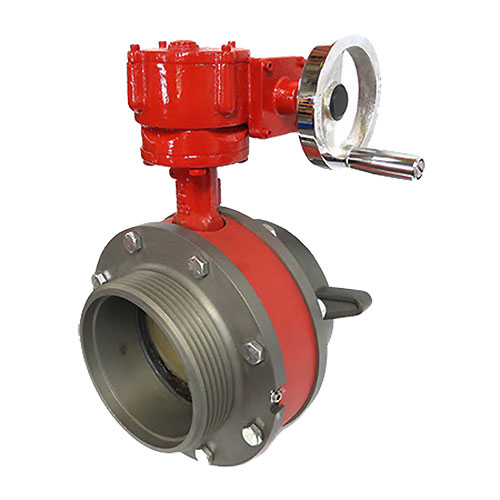

Suction Intake from Elkhart BrassClick for a Larger View

Call us TODAY at 727-835-0657 or
Toll Free at 800-761-4298

*Scroll to the right on mobile to see entire chart
HOW TO ORDER
Select suction intake model (2850 or 2860).
Select intake adapter from available options.
Select discharge adapter from available options.
Specify operation style (gear or lever/trigger).

*Scroll to the right on mobile to see entire chart
MODELS 2850 2860
Waterway Size (Inches) 5” 6”
Operation Style Gear s s
Lever/Trigger o o
Weight (Lbs.)* 35.8 42.4
Available Adapters/End Caps Type Size
Rigid NPT Female 5” ✔
6” ✔ ✔
Rigid NHT Female 4.5” ✔
5” ✔
6” ✔
Storz F/S 4” ✔
5” ✔
NHT Swivel Female 4” ✔
4.5” ✔
5” ✔ ✔
6” ✔ ✔
NHT Male 4” ✔
4.5” ✔
5” ✔ ✔
6” ✔
s = Standard   o = Optional
* Intakes only, excludes adapter options

ADDITIONAL INFORMATION


OPTIONS
NHT swivel female adapters available with long handle or rocker lug
Optional strainer available on some male adapters.
Optional air bleeder valve on male adapters.
THREADS
Valve information is NHT unless otherwise specified. See index T-13 for alternative thread options.
