Sidewinder® EXM2 EXM


* nozzle sold separately
Compact, high-flow, electric remote controlled water cannon/monitor for fire apparatus, ARFF, military, construction and mining vehicles. The Sidewinder is the first water cannon/monitor to utilize the new EXM control platform from Elkhart Brass. Developed as the successor to the radio frequency (RF) control series, the EXM is a “plug and play” digital communication and control architecture that simplifies installation while greatly expanding builder and user selectable options. In addition to the EXM functionality, the Sidewinder has been further updated to employ Elkhart’s patented elliptical waterway and axially aligned thrust bearings for a 50% increase in flow efficiency and 10 times greater durability.

• Click Here For Water Cannon/Monitor Selection Guide
• Click Here For Water Cannon/Monitor Accessories
• Click Here For Accessories

*Scroll to the right on mobile to see entire chart
SPECIFICATIONS
Model 7100SDX2/7100HDX2
Max Flow GPM (LPM) 700 (2800 LPM)
Max Pressure 500 PSI (34.5 bar, 7100SDX2)
600 PSI (42 bar, 7100HDX2)
Inlet 2.5" NPT, 2.5"-150# Flg, 2.5" BSPT, 2.5" BSPP
Outlet 2.5" NHT
Travel V: -45° to +90° (135°)
H: L175 to R175 (350°)
Voltage 12 or 24 VDC compatible
Control CANbus (J1939)
Communication 915 MHz RF - FCC
868 MHz RF - CE
Material/Finish Teflon impregnated, hard coated aluminmum finish

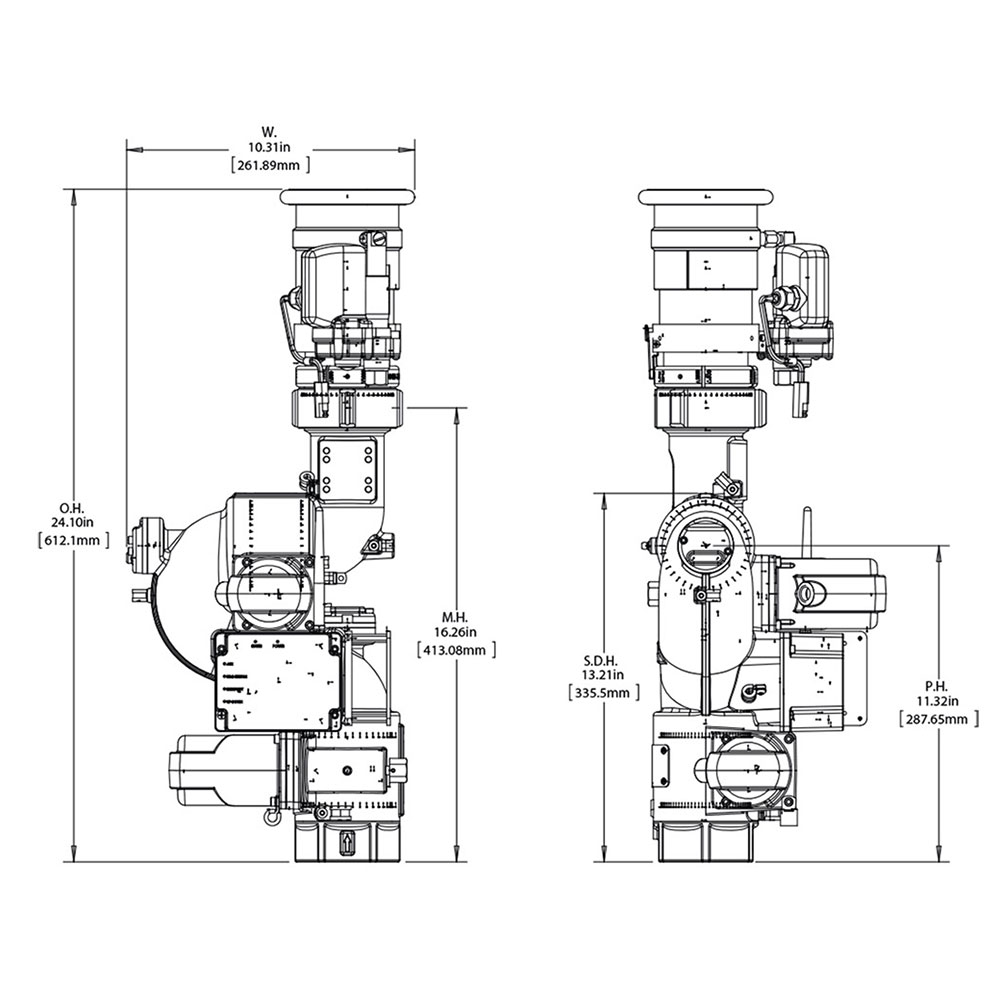

Stow Height 13.2" (335mm)
Weight 18 lbs (8.2 kg)


Click here to request a Quote for the Sidewinder EXM

(reduces turbulence in the water and improves overall stream quality and reach)
  282A-Mini — 2.5" (64 mm) length

  6000-200E (D) –Selectable GPM - 15/30/45/60/95/125/150/200/Flush  |  Selectable LPM – 60/120/170/250/360/500/550/750/Flush
  6000-700E (D) –Selectable GPM – 250/350/500/700  |  Selectable LPM – 1000/1350/2000/2700/Flush
  181-A Smoothbore tip 2.5" NHT x 11/8" discharge –(recommend adding stream shaper)

  7010X2 –Panel Mount Controller
  7015X2 –Wireless Handheld Package
(must select FCC or CE version below)
        FCC application (915 MHz)        CE application (868 MHz)

  7030X2 –Proportional Joystick

  7150 Quick Connect (allows for quick removal of bumper monitor for tilt cab situations)
   7051X2 Position Display (provides horizontal and vertical monitor position via LED display)

  EB20
  EB25

Refer to the Unibody Configurator to select the appropriate valve and endcap package. The EB series of valves matched with the E14X/E16X Electric Actuator all have the capability of being controlled from any of the EXM2 input controllers listed above

 Click to view CANbus Harness Ordering Guide
  37543002 - 2' CAN extension harness
  37543010 - 10' CAN extension harness
  37543015 - 15' CAN extension harness
  37543020 - 20' CAN extension harness
  37543030 - 30' CAN extension harness
  37543040 - 40' CAN extension harness
  24196000 - CAN Splitter
  24197000 - CAN Termination Plug
