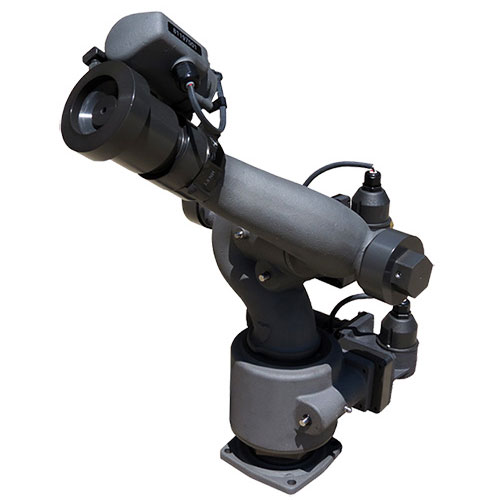

Elkhart Brass Sidewinder EXM UHP
Click for larger view

Call us TODAY at 727-835-0657 or
Toll Free at 800-761-4298

Get A Free Quote!

Sidewinder® EXM UHP EXM


* nozzle sold separately
Compact, ultra high pressure, water cannon/monitor designed to meet US Military standards and available for other applications.

The Sidewinder EXM UHP is a 1500 psi version of the Sidewinder EXM, and uses the same EXM control platform. Developed as the successor to the radio frequency (RF) control series, the EXM operating system is a “plug and play” digital communication and control architecture that simplifies installation while greatly expanding builder and user selectable options.

• Click Here For Water Cannon/Monitor Selection Guide
• Click Here For Water Cannon/Monitor Accessories
• Click Here For Accessories

*Scroll to the right on mobile to see entire chart
SPECIFICATIONS
Model 7161
Max Flow GPM (LPM) 300 (1136)
Max Pressure 1500 PSI (103 bar)
Inlet 2.5” NPT
Outlet 1.5” NHT
Travel V: -45° to +90° (135°)
H: L90 to R90 (180°)
Voltage 11-32 VDC
Control Communication CAN bus (J1939)
Digital radio frequency (unlicensed)
Material/Finish Teflon impregnated, hard anodized Elk-O-Lite®
Weight 27 Lbs.


Panel Mount (2) Handheld (3) Joystick (4) OEM Interface Module (5)
Recommenced Products Panel Mount Recommenced Products Handheld Recommenced Products Joystick Recommenced Products OEM Interface Module
Position Display (6) 5000-14E UHP Nozzle (7) EXM CAN Stow Module (8) External RF Antenna
Recommenced Products Position Display Recommenced Products 5000-14E UHP Nozzle EXM CAN Stow Module External RF Antenna
