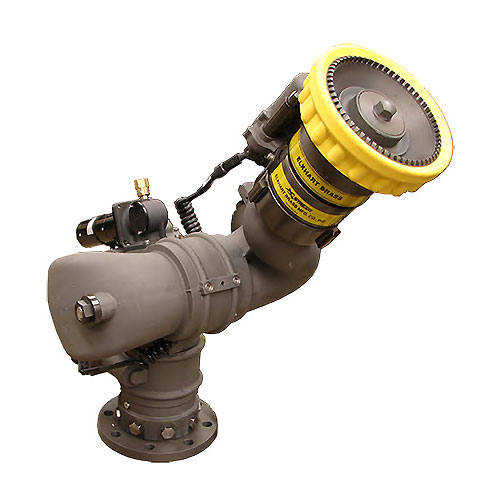

Elkhart Brass Scorpion EXM
Click for larger view

Call us TODAY at 727-835-0657 or
Toll Free at 800-761-4298

Get A Free Quote!

Scorpion® EXM2 EXM

* nozzle sold separately
The Scorpion EXM is a large flow capacity addition to the EXM product family. Developed as the successor to the radio frequency (RF) control series, the EXM operating system is a “plug and play” digital communication and control architecture that simplifies installation while greatly expanding builder and user selectable options. In addition to the EXM functionality, the Scorpion has been further updated to employ a new ultra high efficient waterway and axially aligned thrust bearings for a 23% increase in flow efficiency and 10 times greater durability.

• Click Here For Water Cannon/Monitor Selection Guide
• Click Here For Water Cannon/Monitor Accessories
• Click Here For Accessories

*Scroll to the right on mobile to see entire chart
SPECIFICATIONS
Model 7400X2
Max Flow GPM (LPM) 2500 GPM (9500 LPM)
Max Pressure 500 PSI (34.5 bar)
Inlet 4" ANSI, DN100-PN16
Outlet 3.5" Male NHT & BSPP
Travel V: -45° to +90° (135°)
H: L175 to R175 (350°)
Voltage 12 or 24 VDC compatible
Control CANbus (J1939)
Communication 915 MHz RF - FCC
868 MHz RF - CE
Material/Finish Teflon impregnated, hard coated aluminum finish
Stow Height 20" (508mm)
Weight 52 Lbs (23.6 kg)


Click here to request a Quote for the Scorpion EXM

(reduces turbulence in the water and improves overall stream quality and reach)
  284A – 3.5" NHT x NHT
  284-A – 3.5" BSPP x BSPP

  SM-1250E (D) – 3.5" inlet
  SM-1500E (D) – 3.5" inlet
  SM-2000E (D) – 3.5" inlet

  7010X2 –Panel Mount Controller
  7015X2 –Wireless Handheld Package
(must select FCC or CE version below)
        FCC application (915 MHz)        CE application (868 MHz)

  7030X2 –Proportional Joystick

   7051X2 Position Display (provides horizontal and vertical monitor position via LED display)

  5.0" Butterfly Valve
  6.0" Butterfly Valve

Refer to the Unibody Configurator to select the appropriate valve and endcap package. The EB series of valves matched with the E14X/E16X Electric Actuator all have the capability of being controlled from any of the EXM2 input controllers listed above

 Click to view CANbus Harness Ordering Guide
  37543002 - 2' CAN extension harness
  37543010 - 10' CAN extension harness
  37543015 - 15' CAN extension harness
  37543020 - 20' CAN extension harness
  37543030 - 30' CAN extension harness
  37543040 - 40' CAN extension harness
  24196000 - CAN Splitter
  24197000 - CAN Termination Plug



Note: If you don’t receive a confirmation email of your form submission, please check your “Spam” or “Junk” folders.

SSL Secure Connection

Panel Mount (2) Handheld (3) Joystick (4)
Recommenced Products Panel Mount Recommenced Products Handheld Recommenced Products Joystick
Position Display (5) X-Stream Series Nozzle (6) Light Kit (7)
Recommenced Products Position Display X-Stream Series Nozzle Recommenced Products Light Kit
