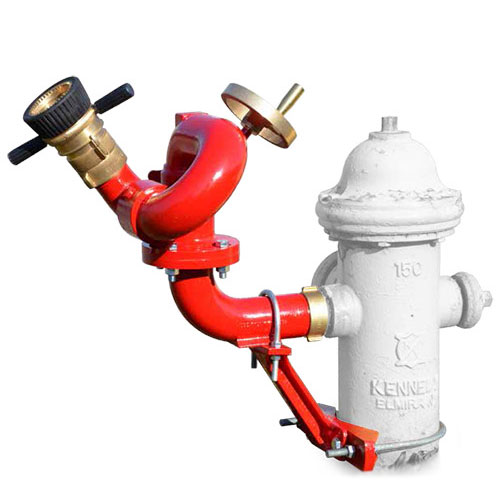

Elkhart Brass Hydrant Mount
Click for larger view

Call us TODAY at 727-835-0657 or
Toll Free at 800-761-4298

Get A Free Quote!

Hydrant Mount

* nozzle sold separately

  • • Several available size and flow options
  • • All construction features designed to minimize maintenance needs
  •    — Corrosion resistant brass construction
  •    — Bronze balls in all swivel joints
  •    — Grease zerks for easy lubrication
  • • Two choices in manual controls — tiller or hand-wheel
  • ADDITIONAL INFORMATION: For 8393H, the hydrant connection fits up to a 10.875" hydrant barrel and includes U-bolts, with nuts, in 10" and 8" sizes. On all other hydrant mount monitors, the hydrant swivel connection attached to 2.5" hydrant nipple (includes elbow assembly and support rods).

• Click Here For Water Cannon/Monitor Selection Guide
• Click Here For Water Cannon/Monitor Accessories
• Click Here For Accessories


*Scroll to the right on mobile to see entire chart
SPECIFICATIONS
8393H 299-11H
Max. GPM (LPM) 1250 (4732) 750 (2839)
Inlets 2.5” NHT (F) 2.5” NHT (F)
Outlet Size 2.5” NHT 2.5” NHT
Controls Single hand-wheel
Tiller
Material/Finish Brass with red urethane enamel Brass with red urethane enamel
Friction Loss 27 psi at 1250 gpm 11 psi at 750 gpm
17 psi at 1000 gpm
9 psi at 750 gpm
Travel V -60º to +70º (130º) V -60º to +70º (130º)
H 360º (continuous) H 360º (continuous)
Weight Varies 85 lbs. 61 lbs
Ratings and Certifications CE and FM Approved CE and FM Approved

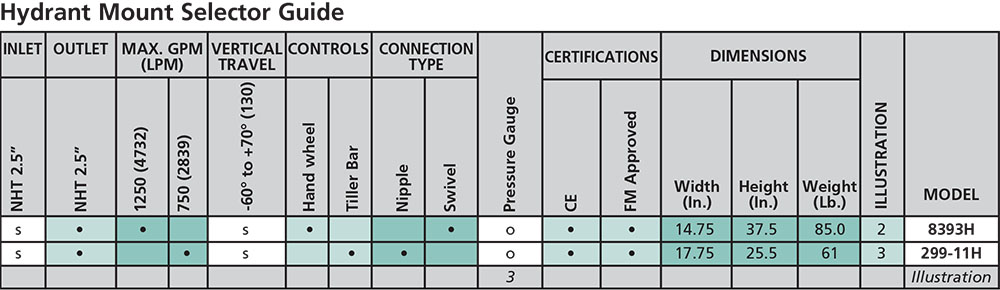

Elkhart Brass Hydrant Mount selection guide


KEY CONFIGURATIONS (ACCESSORIES)



STINGRAY® (2)
PYTHON (3)
PRESSURE
GAUGE (3)
Hydrant Mount with Stingray Monitor
Hydrant Mount with Python Monitor
Pressure Gauge


HF-500 -
HYDRO-FOAM
CJN-B -
SELECT-O-STREAM®
J - MYSTERY® 181 - DELUGE TIP 282B -
STREAM SHAPER
HF-500 HYDRO FOAM CJN-B SELECT-O-STREAM J-MYSTERY 181 DELUGE TIP 282B STREAM SHAPER

Dimensions currently unavailable.
